Grid-Tied Connection
50kWp/ 314m² Roof Surface Area Required For UTICA® UTC-50 Solar Energy System. Grid-Tied Connection 50kWp Photovoltaic Modules.
- Price:SGD $40,000.00
Quality Assurance - Offers a 10-year performance warranty service.
(Note: The pictures in the text are for illustration only. The actual product may differ from the website or promotional materials.)
After the order is confirmed, we will provide physical images to ensure that the purchased products are consistent with expectations. Welcome to click the link to view more real photos of the products.
UTICA® photovoltaic modules adopt the latest generation of heterojunction (HJT) solar cell technology and have the following core advantages:
- Ultra-low internal resistance significantly enhances energy conversion efficiency
- The system's rated voltage exceeds 1000V, meeting the requirements of various high-power applications
- The anti-induced attenuation (PID) design ensures stable operation even in harsh weather conditions
- Extremely low temperature coefficient, efficient power generation all day long, ensuring the maximization of system capacity
To support users with DIY needs, we have specially launched a one-stop installation support service package, which includes:
-
90 minutes of real-time remote technical support (WhatsApp/wechat/Skype)
-
Detailed system design schematic diagrams and wiring diagrams
-
Complete component set: solar panels, inverters, optimizers, structural brackets and a full set of installation accessories, suitable for efficient power generation systems in home and office scenarios
- SGD $40,000.00
In Stock

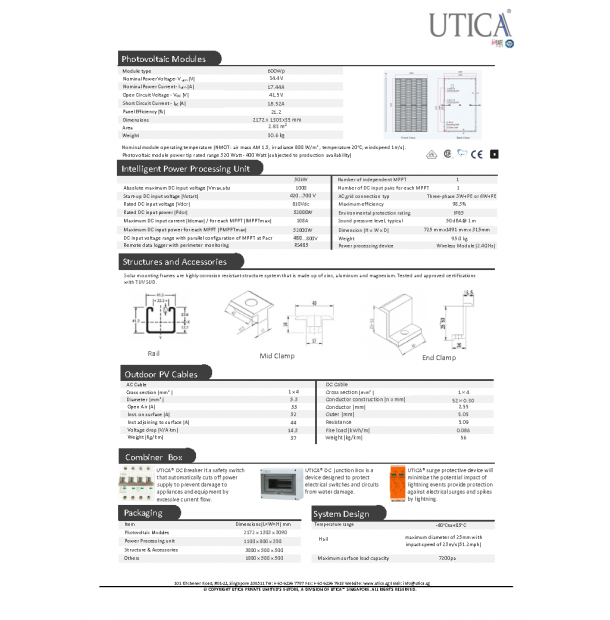

technical details
Photovoltaic Modules
Solar Panel 600Wp: 84units, Size: 2172 x 1303 x 35mm, Weight: 30.6kg/unit
Gird-Tied Inverter 50kW: 1unit, Size: 725 mm x1491 mm x 315mm, Weight: 95.0kg
Fuse 25A 1000VDC: 4pcs, Size: 80 x 36 x 77mm, Weight: 0.5kg/pc
DC SPD 1000VDC 2P: 4pcs, Size: 81 x 54 x 68mm, Weight: 0.5kg/pc
DC 32A Switch Disconnector: 4pcs, Size: 100 x 100 x 80mm, Weight: 0.5kg/pc
Switch waterproof protective box：4pcs
DC Cable: 40m
AC Cable: 5m
Mid Clamp: 144sets
End Clamp: 32sets
Aluminum Rail (3000mm): 126sets
Rail Connector: 100sets
(Estimated, subjected to changes)
Equipment and Components
Genuine Quality Equipment and Components with Guaranteed Energy Performance
Total Estimated Area for Solar Panel: 314m²
System Capacity: 50.4kWp
Nominal Power (Wp): 600Wp
Gird-Tied Inverter: 50kW
Absolute maximum DC input voltage: 1000V
UTICA® Solar Protective Fuse
1000VDC 25A
UTICA® DC Switch Disconnector
1000VDC 32A
UTICA® Surge Protective Device
1000VDC 40KVA
Characteristics
-
10 years warranty for quality & performance
-
High performance and efficiency
-
Easy commissioning with the “Quick Configuration Guide”
-
Complete on-grid management
-
Scalable solar module connections
Feature
-
Anti-occlusion and anti-PID design
Effectively suppress the attenuation of LID and PID, reduce power loss, and ensure the long-term stable output of components.
-
Ultra-low attenuation rate
Industry-leading low attenuation performance ensures higher product reliability and service life.
-
Green manufacturing, sustainable development
Full-process green production promotes the sustainable development of clean energy.
-
Recyclable design
The components can be recycled, extending their life cycle and reducing environmental impact.
-
High-efficiency power generation system
The power generation efficiency of the UTICA system has increased by more than 20%, far exceeding that of traditional photovoltaic solutions
